Jay Industries

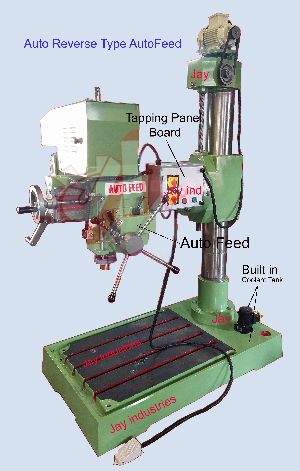

AutoFeed Radial Drilling Machine 40mm Cap. (JIR40 A)

AutoFeed Radial Drilling Machine 40mm Cap. (JIR40 A)
Business Type Manufacturer, Supplier
Drilling Cap. 40
Tapping Cap. 30
Spindle RAM Dia. 78
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Spindle Hole Taper
MT- 4
Spindle Travel
250
Spindle Speed
88-2600 x 8

Yes! I am interested


Technical Specification

Specification JIR 40 JIR40 A(AutoFeed)
Drilling Cap. 40 40
Boring Cap. - 80
Tapping Cap. 30 30
Spindle RAM Dia. 78 78
Spindle Hole Taper MT- 4 MT- 4
Spindle Travel  250 250
Spindle Speed 88-2600 x 8 88-2600 x 8
Spindle Autofeed Ranges fine Feed 0.02/0.05 rev/mm
Max./Min. Dist. Spindle nose to Base 850/250 850/250
Max./Min. Dist. Spindle center to Column 950/385 950/385
Drilling Radius 1010 1010
Dia. Of Column 170 170
Work Table 300 x 300x 385 300 x 300x 385
Drill Head Motor 2HP,960/1440RPM 2HP,960/1440RPM
Elevating Motor 0.5HP 1440 RPM 0.5HP 1440 RPM
V- Belt Size for Head Motor B47 B47
V- Belt Size for Elevating Motor A23 A23
