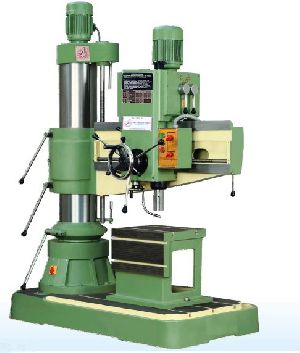

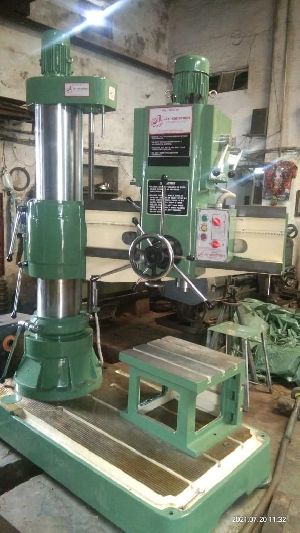

Double Column Radial Drilling machine 50mm Cap.

Double Column Radial Drilling machine 50mm Cap.

Business Type : Manufacturer, Supplier

Product Details

Drive Left Hand
Column Structure Double Column
Diameter of Column 280
Weight Appr 3000 Kgs
Locking System Manual -Separate lock for Arm Radial movement and Arm up-down movement
Lifting nut Gun Metal - 100 mm long
Spindle Quill / Ram Movement In Cylinder Liner Bush
Spring Heavy Duty Compression Spring
Drill Head Movement By Rack & Pinion On Bearings & Rollers
Drilling in MS 50
Drilling in C.I. 60
Rough Boring in M.S. 90
Tapping in M.S. 42
Spindle Taper MT-4
Spindle Travel 255
Spindle Speed 12 Steps
Diameter of Ram (quill) 80
No. of Spindle Speeds 12 (all 12 Speeds Through Gears Only and Not By 2 Speed Motor)
No. of Autofeed 6
Range of Autofeed (mm/rev) 0.13-1.10 mm/rev.
Max Min Spindle Nose to Base 1135 / 395
Vertical Travel of Arm 740
Max / Min Dist. Of Spindle center to column 1400/615
Horizontal Travel of Arm 745
Machine Measurement 1600 x 1000 x 2490
Drill Head Motor 2 HP / 960 RPM / Flange Mounted
Elevating Motor 1 HP / 960 RPM / Flange mounted
Box Table 560 x 460 x 400x
