1.90 Lac - 2.25 Lac / piece
| Business Type | Manufacturer, Supplier |
| Brand Name | JAY |
| Weight | 1000 KG |
| Capacity | 50mm |
| Click to view more | |
Product Details
Machine Type
Radial
Power Source
440V AC
Motor Power
2HP
Operating Voltage
440V
Spindle Travel
250
Drilling Cap.
50
Boring Cap.
75
Tapping Cap.
30
Spindle RAM Dia.
78
Spindle Hole Taper
MT- 4
Spindle Speed
50-936 x 9
Product Code
JIR45 G
Payment Terms
L/C
Delivery Time
2 weeks

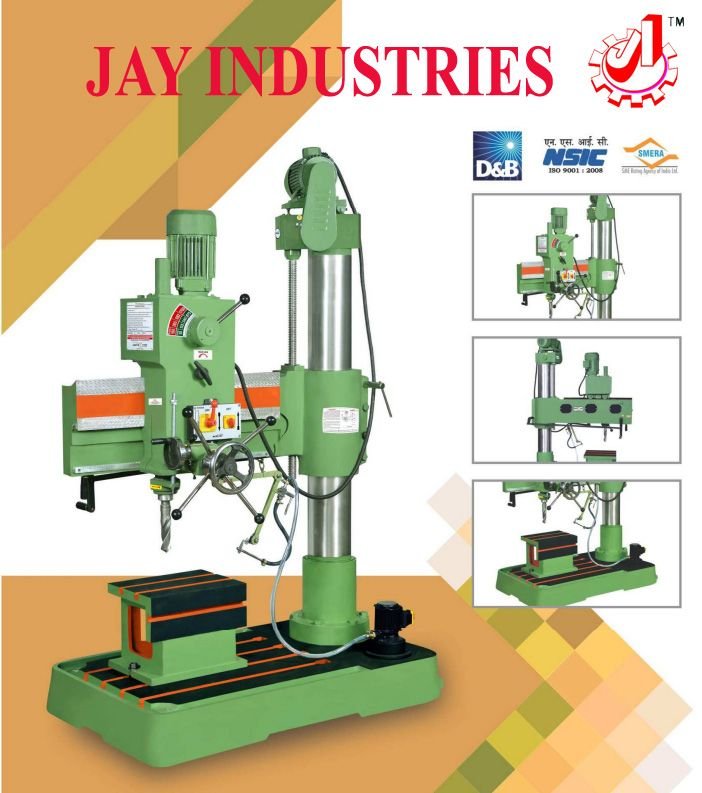

50mm Capacity Radial Drilling machine
Model: JIR45 G
Drilling Cap. 50mm
Drilling Radius 1 Meter
Drilling Speed: 8/ 75-2750 RPM
Fully Geared Radial Driling machine.
Radial drilling machines, HMT Drilling machines, Autofeed Drilling machines.
Technical Specification
| Specification | JIR 40 G (Geared) | JIR 40 AA (Autofeed) |
| Drilling Cap. | 40 | 40 |
| Boring Cap. | 75 | 75 |
| Tapping Cap. | 30 | 30 |
| Spindle RAM Dia. | 78 | 78 |
| Spindle Hole Taper | MT- 4 | MT- 4 |
| Spindle Travel | 250 | 250 |
| Spindle Speed | 50-936 x 9 | 50-936 x 9 |
| Spindle Autofeed Ranges | Fine Feed | 0.05 & 0.09 mm/rev. |
| Max./Min. Dist. Spindle nose to Base | 980/250 | 980/250 |
| Max./Min. Dist. Spindle center to Column | 980/400 | 980/400 |
| Drilling Radius | 1010 | 1010 |
| Dia. Of Column | 250 | 250 |
| Work Table | 300 x 300x 385 | 300 x 300x 385 |
| Drill Head Motor | 2HP,960/1440RPM | 2HP,960/1440RPM |
| Elevating Motor | 0.5HP 1440 RPM | 0.5HP 1440 RPM |
| V- Belt Size for Elevating Motor | A23 | A23 |
