AllGeared Autofeed Radial Type Pillar Drilling machine 50mm Cap. (JIP50 AA)

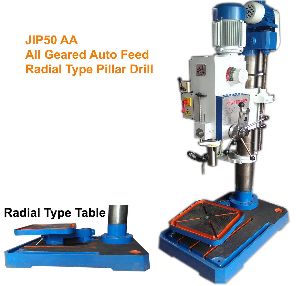

Allgeared Autofeed Radial Type Pillar Drilling Machine 50mm Cap. (JIP50 AA)
Business Type Manufacturer, Supplier
Model JIP50 AA
Capacity Drilling Cap. In M.S. Drilling Cap. In M.S.
Drilling Cap. In C.I. 60
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Rough Boring in M.S.
85
Tapping Cap. In M.S.
25
Drilling Head Spindle Hole Taper
MT- 5
Spindle Travel
255mm
Spindle Speeds ( RPM × Steps)
75-1700 × 8 mm
Diameter of RAM
87
Autofeed Ranges (mm/rev.)
0.05 & 0.09
Working Range Max. Dist. Spindle Nose to Table
660 mm
Spindle Center to Column
385 mm
Table Size (Radial Type Movable)
500 x 500 / 625 mm
Machine Measurement( L × W × H )
500 × 304 × 1600 mm
Column Diameter
150 mm
Dist. From spindle Nose to Base
950 mm
Power Drill Head Motor
2 HP
Drive
Drive

Features:

  • Radial Type Table for Better Accuracy and Durable for Heavy Job.
  • All Gears are Made up of Ni-Cr Alloy material and hardened and Grounded upto 55 HRC.
  • Spindle Made up of EN-8 material and Grounded Externally as well as Internally.
  • Spindle Rotates on Taper Roller Bearings for Precision Drilling Operation.
  • Column molded by Centrifugal Cast to prevent Blow Holes and Extra Rigidity.
Read More...
