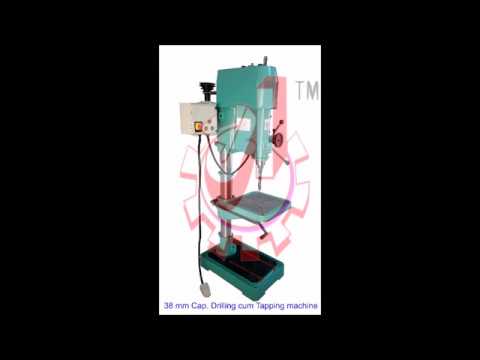

Pneumatic Feed Pillar Drilling Machine

Pneumatic Feed Pillar Drilling Machine

Business Type : Manufacturer, Supplier

Product Details

Model JIP38T
Capacity Drilling Cap. In M.S. 38mm
Drilling Cap. In C.I. 50mm
Tapping Cap. In M.S. 25mm
Drilling Head Spindle Hole Taper MT- 4
Spindle Travel 250mm
Spindle Speeds ( RPM × Steps) 100-2650 × 8mm
Diameter of RAM 78
Feed Type Pneumatic Feed
Working Range Max. Dist. Spindle Nose to Table 560mm
Spindle Center to Column 306 (13 inch)
Table Size 450 × 450mm
Machine Measurement( L × W × H ) 500 × 500 × 1600
Column Diameter 120
Dist. From spindle Nose to Base 1050
Power Drill Head Motor 1.5 HP
V-Belt B-63

Preferred Buyer From

Location Anywhere in India

Features:

  • Handle Type Table Bracket Lock.
  • Hardened Spindle, Internally and Externally Grounded.
  • Spindle Rotates on Taper Roller Bearings.
  • Gears Made up of 25 Graded Cast and Balanced on High Precision Machine.
  • Threaded Spindle with Arbor Holding Nut.
